Water Distillation Systems


9111 ‐All Glass Single Distillation Unit, With Borosilicate Boiler, Borosilicate Condenser & Quartz Heater, Horizontal Type
  • Ideal for determining nitrogen in organic compounds
  • Digestion and distillation stages can be performed in this apparatus
  • The inlet tube allows permanganate solution to be introduced after distillation
Cat No. Cat No.9111 - 1.5 L 9111 - 2.5 L 9111 - 4.0 L
Dist. Water Output Cap.(Approx) 1.5 lt/hr. 2.5 lt/hr. 4 lt/hr
Electrical requirements 230-250 volts Single phase 1.5kw Quartz heater 230-250 volts Single phase 2.2kw Quartz heater 230-250 volts Single phase 3.5kw Quartz heater
Minimum coolingWater requirement 1 Lit / min 1.5 Lit / min 2 Lit / min
Biological activity Pyrogen Free Pyrogen Free Pyrogen Free
Conductivity S/cm <3 x 10 6 <3 x 10 6 <3 x 10 6
Distillate temp 65-750 C 65-750 C 65-750 C

Product code Output Capacity (Lt/Hr) Total power consumed (kw) Quantity per case
9111/41 1.5 1.5 1
9111/41 2.5 2.2 1
9111/41 4.0 3.5 1
Standard Accessories for Cat No. 9111

Distillation Apparatus Power Supply (DAPS) enables the Distillation Unit to function automatically by switching off the heater in case the water level falls below the heating coil, thereby safeguarding the heaters.

  • The sensor rods are adjusted above the heater levels, and operate on 12 Volt power supply
  • DAPS emits a buzzer sound alert to indicate low water level
  • The Unit is unique for each model
Product code Output Capacity (Lt/Hr) Description
9111/41 1.5 Distillation Appartus Power Supply (DAPS)
9111/42 2.5 Distillation Appartus Power Supply (DAPS)
9111/43 4.0 Distillation Appartus Power Supply (DAPS)
Spares for Distillation unit for Cat No. 9111
Product code Output Capacity (Lt/Hr) Description
9111/11 1.5 Borosilicate Boiler with Water Leveller
9111/21 1.5 Condenser
9111/12 1.5 Quartz new type heater B-34
9111/31 2.5 Borosilicate Boiler with Water Leveller
9111/41 2.5 Condenser
9111/13 2.5 Quartz new type heater B-50
9111/21 4.0 Borosilicate Boiler with Water Leveller
9111/21 4.0 Condenser
9111/23 4.0 Quartz new type heater B-50

9112 ‐All Glass Double Distillation Unit, With Borosilicate Boiler, Borosilicate Condenser & Quartz Heater, Horizontal Type
Cat No. Cat No.9112 - 1.5 L 9112 - 2.5 L 9112 - 4.0 L
Dist. Water Output cap.(Approx) 1.5 lt/hr. 2.5 lt/hr. 4 lt/hr
Electrical requirements 230-250 volts 230-250 volts 230-250 volts
Single phase single phase 1.5x2 kw Quartz heater single phase 1.5x2 kw Quartz heater single phase 1.5x2 kw Quartz heater
Minimum CoolingWater requirement 2 Lit / min (Each 2.5 Lit / min (Each) 2.5 Lit / min (Each)
Biological activity Pyrogen Free Pyrogen Free Pyrogen Free
Conductivity S/cm <1 x 106 <1 x 106 <1 x 106
Distillate temp 65-750 C 65-750 C 65-750 C

Product code Output Capacity (Lt/Hr) Total power consumed (kw) Quantity per case
9112/41 1.5 1.52=3 1
9112/41 2.5 2.2+2.2 =5.5 1
9111/41 4.0 3.5 + 2 = 7 1
Standard Accessories for Cat No. 9112

Distillation Apparatus Power Supply (DAPS) enables the Distillation Unit to function automatically by switching off the heater in case the water level falls below the heating coil, thereby safeguarding the heaters.

  • The sensor rods are adjusted above the heater levels, and operate on 12 Volt power supply
  • DAPS emits a buzzer sound alert to indicate low water level
  • The Unit is unique for each model
Product code Output Capacity (Lt/Hr) Description
9112/41 1.5 Distillation Appartus Power Supply (DAPS)
9112/42 2.5 Distillation Appartus Power Supply (DAPS)
9112/43 4.0 Distillation Appartus Power Supply (DAPS)
Spares for Distillation unit for Cat No. 9112
Product code Output Capacity (Lt/Hr) Description
9112/11 1.5 Borosilicate Boiler with Water Leveller
9112/21 1.5 Condenser
9112/12 1.5 Quartz new type heater B-34
9112/31 2.5 Borosilicate Boiler with Water Leveller
9112/41 2.5 Condenser
9112/13 2.5 Quartz new type heater B-50
9112/21 4.0 Borosilicate Boiler with Water Leveller
9112/21 4.0 Condenser
9112/23 4.0 Quartz new type heater B-50

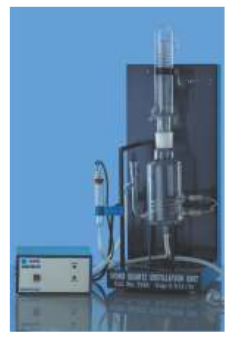

9113 ‐ Mono Quartz Distillation Unit, Panel Mounted with Quartz Boiler & Borosilicate Condenser, Vertical Model
Cat No. 9113 - 2.5 L 9113 - 5 L 9113 - 10 L
Dist. Water Output cap.(Approx) 2.5 lt/ hr 5 lt/hr 10lt/hr
Electrical 230-250 volts 230-250 volts 230-250 volts
Requirements single phase 2.2 kw single phase 4.4 kw single phase 3 x 2.93 kw
Minimum CoolingWater requirement 1 Lit / min 2 Lit / min 2.5 Lit / min
Biological activity Pyrogen Free Pyrogen Free Pyrogen Free
Conductivity S/cm <3 x 106 <3 x 106 <3 x 106

Product code Output Capacity (Lt/Hr) Total power consumed (kw) Quantity per case
9113/41 2.5 2.2 x 1 =2.2 1
9113/41 5.0 2.2 x 2 =4.4 1
9113/41 10 2.93 x 3 =8.8 1
Standard Accessories for Cat No. 9113

Distillation Apparatus Power Supply (DAPS) enables the Distillation Unit to function automatically by switching off the heater in case the water level falls below the heating coil, thereby safeguarding the heaters.

  • The sensor rods are adjusted above the heater levels, and operate on 12 Volt power supply
  • DAPS emits a buzzer sound alert to indicate low water level
  • The Unit is unique for each model
Product code Output Capacity (Lt/Hr) Description
9113/41 2.5 Distillation Appartus Power Supply (DAPS)
9113/33 5.0 Distillation Appartus Power Supply (DAPS)
9113/88 10.0 Distillation Appartus Power Supply (DAPS)
Spares for Distillation unit for Cat No. 99113
Product code Output Capacity (Lt/Hr) Description
9113/12 2.5 Quartz Boiler
9113/22 2.5 Borosilicate Condenser
9113/32 5.0 Quartz Boiler
9113/00 5.0 Borosilicate Boiler with Water Leveller
9113/02 10.0 Quartz Boiler
9113/03 10.0 Borosilicate Boiler with Water Leveller

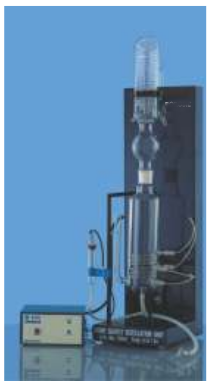

9114 ‐ Mono Quartz Distillation Unit, Panel Mounted with Quartz Boiler And Quartz Condenser, Vertical Mode
Cat No. 9114 - 2.5 L 9113 - 5 L
Dist. Water Output cap.(Approx) 2.5lt/hr 5 lt/hr
Electrical 230-250 volts 230-250 volts
Requirements single phase 2.2 kw single phase 4.4 kw
Minimum Cooling Water requirement 1 Lit / min 2 Lit / min
Biological activity Pyrogen Free Pyrogen Free
Conductivity S/cm <2 x 106 <2 x 106

Product code Output Capacity (Lt/Hr) Total power consumed (kw) Quantity per case
9114/42 2.5 2.2 1
9114/33 5.0 2.2 x 2 =4.4 1
Standard Accessories for Cat No. 9114

Distillation Apparatus Power Supply (DAPS) enables the Distillation Unit to function automatically by switching off the heater in case the water level falls below the heating coil, thereby safeguarding the heaters.

  • The sensor rods are adjusted above the heater levels, and operate on 12 Volt power supply
  • DAPS emits a buzzer sound alert to indicate low water level
  • The Unit is unique for each model
Product code Output Capacity (Lt/Hr) Description
9114/41 2.5 Distillation Appartus Power Supply (DAPS)
9114/33 5.0 Distillation Appartus Power Supply (DAPS)
Spares for Distillation unit for Cat No. 9114
Product code Output Capacity (Lt/Hr) Description
9114/12 2.5 Quartz Boiler
9113/22 2.5 Quartz Condenser
9113/32 5.0 Quartz Boiler
9113/00 5.0 Quartz Condenser

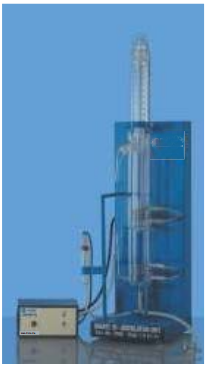

9115 ‐ All Quartz Double Distillation Unit, Demountable Boiler Panel series, Vertical Model
Cat No. 9115 - 1.5 L 9115 - 2.5 L 9115 - 5 L
Dist. Water Output cap.(Approx) 1.5lt/hr 2.5 lt/hr 5 lt/hr
Electrical 230-250 volts 230-250 volts 230-250 volts
Requirements single phase 3 kw single phase 4.4 kw single phase 4 x 2.2 kw
Minimum Cooling Water requirement 1 Lit / min 2 Lit / min 2.5 Lit / min (Each)
Distillate Quality Specifications

Biological Activity Pyrogen Free
Conductivity S/c < 1x106
Total Organic Carbon ( TOC) μg/l < 500
Organic Matter mg/lit nil
Total Solids mg/lit < 0.1
Distillate Temp 65-75 0C
Total plate count 0
Standard Plate Count 0
Yeast and Mould 0
KMnO 4 color retention 1 hr
UV absorbance at 254 n 0.007
Distillate Quality Specifications
Product code Output Capacity (Lt/Hr) Total power consumed (kw) Quantity per case
9115/42 1.5 1.5 x 2 = 3.0 1
9115/33 2.5 2.2 x 2 = 4.4 1
9115/33 5.0 2.2 x 4 = 8.8 1
Standard Accessories for Cat No. 9115

Distillation Apparatus Power Supply (DAPS) enables the Distillation Unit to function automatically by switching off the heater in case the water level falls below the heating coil, thereby safeguarding the heaters.

  • The sensor rods are adjusted above the heater levels, and operate on 12 Volt power supply
  • DAPS emits a buzzer sound alert to indicate low water level
  • The Unit is unique for each model
Product code Output Capacity (Lt/Hr) Description
9115/41 1.5 Distillation Appartus Power Supply (DAPS)
9115/42 2.5 Distillation Appartus Power Supply (DAPS)
9115/33 5.0 Distillation Appartus Power Supply (DAPS)
Spares for Distillation unit for Cat No. 9115
Product code Output Capacity (Lt/Hr) Description
9115/13 1.5 Primary Boiler
9115/15 1.5 Secondary Boiler
9115/63 1.5 Receiving Adapter with spring
9115/14 2.5 Primary Boiler
9115/16 2.5 Secondary Boiler
9115/63 2.5 Receiving Adapter with spring
9115/04 5.0 Primary Boiler
9115/05 5.0 Secondary Boiler
9115/63 5.0 Receiving Adapter with spring
9115/52 Silicon ‘O’ Ring
