Cylinders

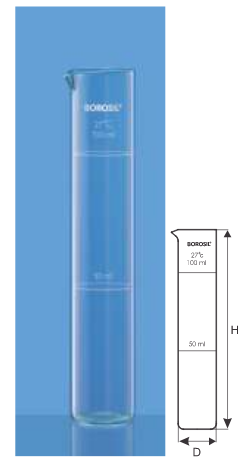

6111 ‐ Cylinders, Colour Comparison, Nessler, Flat Bottom, Graduated
  • Facilitates colour comparison of water samples
  • Manufactured from precision bore 3.3 borosilicate tubing selected for freedom from colour or visible defects
  • White enamel inscriptions
Cat. Ref Capacity ml Approx O.D. x Height mm Qty per case
6111/12 50 25 x 150 20
6111/16 100 34 x 180 30

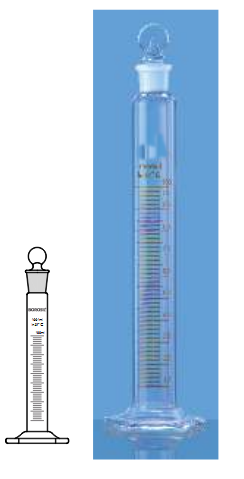

6112 - Cylinders, Graduated, Single Metric Scale, with Penny Head Interchangeable Stopper with Hexagonal Base, Class A
  • Each cylinder is engraved with a unique serial number, and comes with a Certificate of Calibration traceable to national standards
  • Graduations in Amber ename
  • Sturdy hexagonal base prevents roll-over and ensures greater stability
  • Solid glass stopper
Cat. Ref Capacity ml Graduation Intervel mm Tolerance +ml Stopper size Qty per case
6112/05 5 0.1 0.05 10 / 15 5
6112/06 10 0.2 0.10 10 / 15 5
6112/09 25 0.5 0.25 14 / 15 10
6112/12 50 1.0 0.50 14 / 15 10
6112/16 100 1.0 0.50 19 / 20 5
6112/21 250 2.0 1.00 24 / 25 5
6112/24 500 5.0 2.50 24 / 25 5
6112/29 1000 10.0 5.0 34 / 25 5
6112/30 2000 20.0 10.0 34 / 25 5

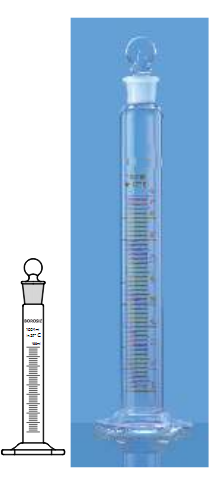

6113 - Cylinders, Graduated, Single Metric Scale, with Penny Head Interchangeable Stopper with Hexagonal base, Class B
  • Graduations in Amber enamel
  • Sturdy hexagonal base prevents roll-over and ensures greater stability
  • Solid glass stopper
Cat. Ref Capacity ml Graduation Intervel mm Tolerance +ml Stopper size Qty per case
6113/05 5 0.1 0.1 10 / 15 5
6113/06 10 0.2 0.2 10 / 15 5
6113/09 25 0.5 0.5 14 / 15 10
6113/12 50 1.0 1.0 14 / 15 10
6113/16 100 1.0 1.0 19 / 20 5
6113/21 250 2.0 2.0 24 / 25 5
6113/24 500 5.0 5.0 24 / 25 5
6113/29 1000 10.0 10.0 34 / 25 5
6113/30 2000 20.0 20.0 34 / 25 5

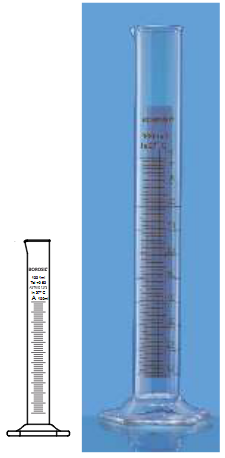

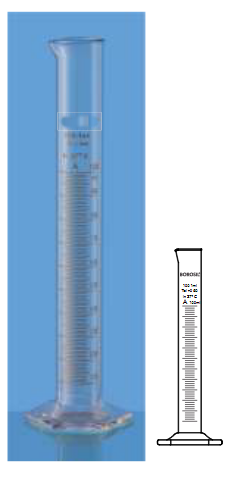

6114 - Cylinders, Graduated, Single Metric Scale, with Pour Out, with Hexagonal Base, ClassA
  • Each cylinder is engraved with a unique serial number, and comes with a Certificate of Calibration traceable to national standards
  • Graduations in Amber enamel
  • Sturdy hexagonal base prevents roll-over and ensures greater stability
Cat. Ref Capacity ml Graduation Intervel mm Tolerance +ml Qty per case
6114/05 5 0.1 0.05 5
6114/06 10 0.2 0.1 5
6114/08 20 1.0 0.25 10
6114/09 25 0.5 0.25 10
6114/12 50 1.0 0.5 10
6114/16 100 1.0 0.5 10
6114/18 150 2.0 1.0 5
6114/21 250 2.0 1.0 10
6114/24 500 5.0 2.5 5
6114/29 1000 10.0 5.0 4
6114/30 2000 20.0 10.0 4

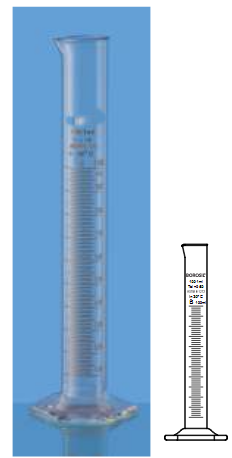

6115 - Cylinders, Graduated, Single Metric Scale, with Pour out, with Hexagonal Base, Class B
  • Graduations in Amber enamel
  • Sturdy hexagonal base prevents roll-over and ensures greater stability
Cat. Ref Capacity ml Graduation Intervel mm Tolerance +ml Qty per case
6115/05 5 0.1 0.1 5
6115/06 10 0.2 0.2 5
6115/09 25 0.5 0.5 10
6115/12 50 1.0 1.0 10
6115/16 100 1.0 1.0 10
6115/18 150 2.0 2.0 5
6115/21 250 2.0 2.0 10
6115/24 500 5.0 5.0 5
6115/29 1000 10.0 10.0 4
6115/30 2000 20.0 20.0 4

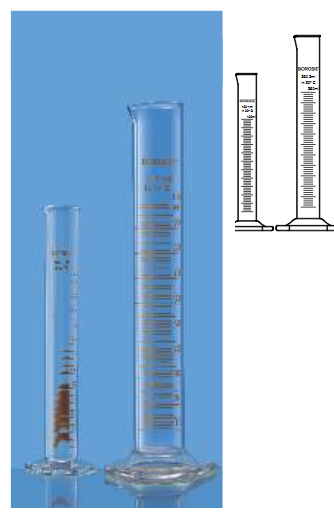

6116 - Cylinders, Single Metric Scale, with Pour Out, Schelbach type, with Hexagonal Base, Class B
  • Graduations in Amber enamel
  • Sturdy hexagonal base prevents roll-over and ensures greater stability
  • Proper visibility to read the miniscus
Cat. Ref Capacity ml Graduation Intervel mm Tolerance +ml Qty per case
6116/01 50 1.0 1.0 5
6116/01 50 1.0 1.0 5

6117 - Cylinders, Graduated, Single Metric Scale, with Pour Out, with Hexagonal Base, Accuracy as per ASTM, Class A
  • Calibrated as per Class A tolerances required by the United States Pharmacopoeia (USP) that are tighter than those of ISO / DIN standards
  • Each cylinder is engraved with a unique serial number, and comes with a Certificate of Calibration traceable to national standards
  • Graduations in Amber enamel
  • Manufactured with chemically resistant 3.3 borosilicate glass
  • Sturdy hexagonal base prevents roll-over and ensures greater stability
Cat. Ref Capacity ml Graduation Intervel mm Tolerance +ml Qty per case
6117/05 5 0.1 0.05 5
6117/06 10 0.2 0.10 5
6117/09 25 0.5 0.17 5
6117/12 50 1.0 0.25 5
6117/16 100 1.0 0.50 5
6117/21 250 2.0 1.0 5
6117/24 500 5.0 2.0 4
6117/29 1000 10.0 3.0 4
6117/30 2000 20.0 6.0 4

6118 - Cylinders, Graduated, Single Metric Scale Pour Out with Hexagonal Base, Accuracy as per ASTM, Class B
  • Calibrated as per Class A tolerances required by the United States Pharmacopoeia (USP) that are tighter than those of ISO / DIN standards
  • Each cylinder is engraved with a unique serial number, and comes with a Certificate of Calibration traceable to national standards
  • Graduations in Amber enamel
  • Manufactured with chemically resistant 3.3 borosilicate glass
  • Sturdy hexagonal base prevents roll-over and ensures greater stability
Cat. Ref Capacity ml Graduation Intervel mm Tolerance +ml Qty per case
6118/05 5 0.1 0.10 5
6118/06 10 0.2 0.20 5
6118/09 25 0.5 0.34 5
6118/12 50 1.0 0.5 5
6118/16 100 1.0 1 5
6118/21 250 2 2.0 5
6118/24 500 5 4.0 4
6118/29 1000 10.0 6.0 4
6118/30 2000 20.0 12.0 4

6119 - Tapped Density Cylinder, As Per USP,
  • Used in tapped density apparatus to measure bulk density of powders
Cat. Ref Capacity ml Qty per case
6119/41 100 & 250 1

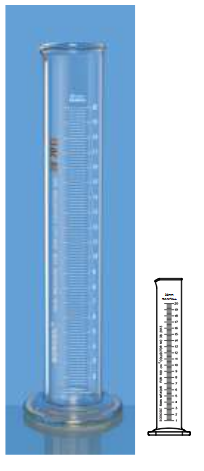

6120 - Cylinders, Rain Measure, Metric Scale, Graduated, With Round Base
  • Manufactures with chemically resistance 3.3 borosilicate glass
  • Graduation in white enamel
  • The cylinders are graduated to indicate rainfall in mm when used with appropriate rain collector
Cat. Ref Size mm Used for collector area cm2 Graduation Interval mm Tolerance +mm Quantity per case
6120/98 20 200 0.2 0.05 5
6120/98 20 100 0.2 0.10 10
