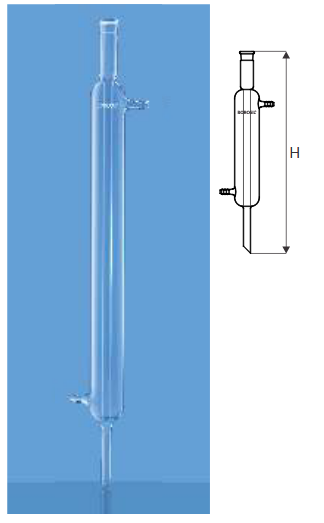

5111 ‐ Condensers, Liebig, with Sealed Inner Tube
- Simple design
- The light wall of the inner tube facilitates efficient heat transfer
- Low cooling capacity
- Used for distillate separation
Cat. Ref |
Approx Jacket Length mm |
Approx overall height mm |
Interchangeble Joints |
Qty per case |
5111/87 |
200 |
350 |
19 / 15 |
5 |
5111/90 |
300 |
450 |
19 / 15 |
5 |
5111/92 |
400 |
550 |
19 / 15 |
5 |
5111/95 |
500 |
650 |
19 / 15 |
5 |

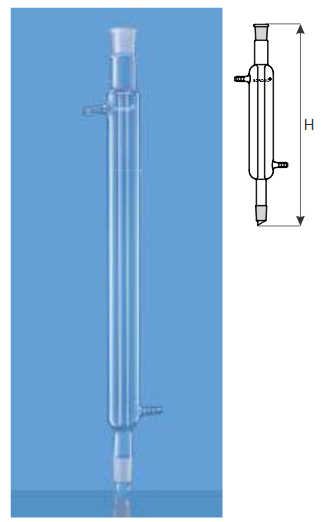

5112 - -Condensers, Liebig, Drip Tip, Interchangeable Inner and Outer Joint
- Simple design
- The light wall of the inner tube facilitates efficient heat transfer
- Low cooling capacity
- Used for distillate separation
Cat. Ref. |
Approx jacket length mm |
Approx overall height mm
| Interchangeable Joints
| Qty per case
|
Socket |
cone |
5112/87 |
200 |
350 |
19 / 26 |
19 / 26 |
5 |
5112/90 |
300 |
450 |
24 / 29 |
24 / 29 |
5 |
5112/92 |
400 |
550 |
24 / 29 |
24 / 29 |
5 |

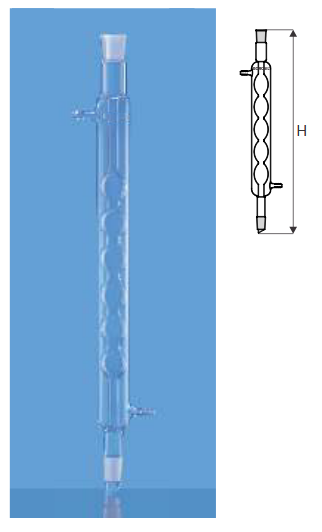

5113 - Condensers, Allihn, Drip Tip, Interchangeable Inner and Outer Joint
- Greater surface area than the Liebig Condenser owing to a series of bulbs, resulting in higher cooling capacity
- Ideal for laboratory scale refluxing
Cat. Ref. |
Approx jacket length mm |
Approx overall height mm
| Interchangeable Joints
| Qty per case
|
Socket |
cone |
5113/87 |
200 |
330 |
19 / 26 |
19 / 26 |
5 |
5113/90 |
300 |
450 |
24 / 29 |
24 / 29 |
5 |
5113/92 |
400 |
550 |
24 / 29 |
24 / 29 |
5 |
5113/96 |
600 |
750 |
29 / 32 |
29 / 32 |
5 |

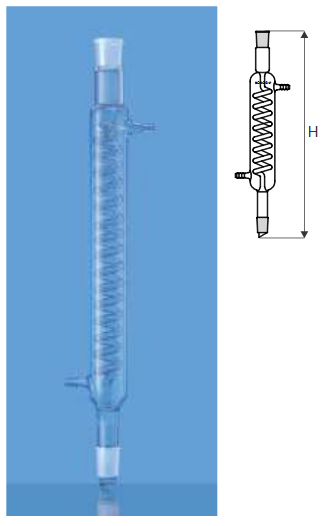

5114 - Condensers, Graham, Coiled Distillate Type, Drip Tip, Interchangeable Inner and Outer Joint
- The coiled condensation tubes result in greater surface area for cooling
- Designed with top standard taper outer and lower inner drip tip joint
Cat. Ref. |
Approx jacket length mm |
Approx overall height mm
| Interchangeable Joints
| Qty per case
|
Socket |
cone |
5114/90 |
300 |
450 |
24 / 29 |
24 / 29 |
5 |
5114/92 |
400 |
550 |
24 / 29 |
24 / 29 |
5 |
5114/95 |
500 |
650 |
24 / 29 |
24 / 29 |
5 |

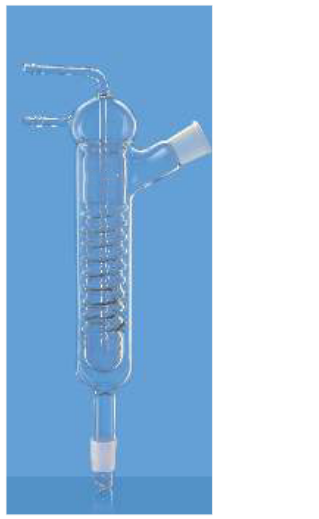

5115 - Condensers, Friedrichs, Drip Tip, Interchangeable Inner and Outer Joint
- Specially designed inner spiral tubes ensure a long vapour path
- Offer better heat transfer and anti-flooding capabilities
Cat. Ref. |
Approx jacket length mm |
Interchangeable Joints
| Qty per case
|
Socket |
cone |
5115/90 |
350 |
24 / 29 |
24 / 29 |
5 |

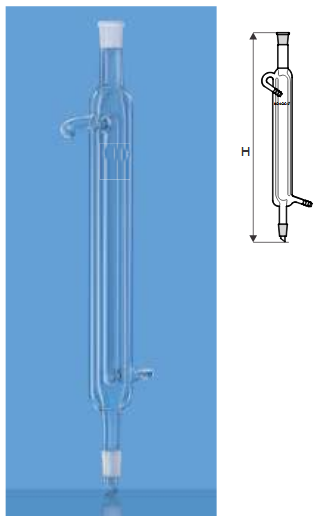

5116 - Condensers, Double Surface
Cat. Ref. |
length of height mm |
Interchangeable Ground Joints
| Qty per case
|
5116/87 |
200 |
19 / 26 |
5 |
5116/87 |
200 |
24 / 29 |
5 |
5116/90 |
300 |
19 / 26 |
5 |
5116/90 |
300 |
24 / 29 |
5 |
