Adapter

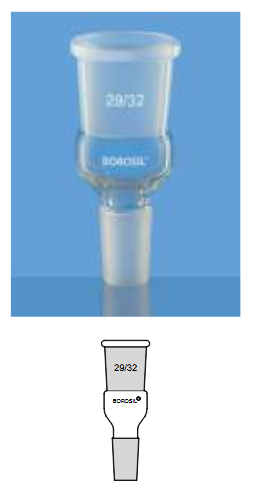

11711- Adapter, Enlarging, Interchangeable Joints
  • Made of borosilicate glass
  • An outer interchangeable joint at the top and a smaller inner interchangeable joint at the base
  • These joints are made to the same precision as all Borosil ground joints
Product code Socket Joints size Cone joint size Quantity per case
11711/A01 19 / 26 14 / 23 5
11711/A02 24 / 29 14 / 23 5
11711/A03 24 / 29 19 / 26 5
11711/A04 29 / 32 19 / 26 5
11711/A05 29 / 32 24 / 29 5
11711/A06 34 / 35 19 / 26 5
11711/A07 34 / 35 24 / 29 5
11711/08 34 / 35 29 / 32 5

11712- Adapter, Reduction, Interchangeable Joints
  • Made of borosilicate glass
  • An outer interchangeable joint at the top and a smaller inner interchangeable joint at the base
  • These joints are made to the same precision as all Borosil ground joints
Product code Socket Joints size Cone joint size Quantity per case
11712/A09 29 / 32 34 / 35 5
11712/A10 14 / 23 19 / 26 5
11712/A11 14 / 23 24 / 29 5
11712/A12 19 / 26 29 / 32 5
11712/A13 19 / 26 34 / 35 5
11712/A14 24 / 29 29 / 32 5
11712/A15 24 / 29 34 / 35 5
11712/A16 29 / 32 40 / 38 5
11712/A17 19 /26 24 / 29 5

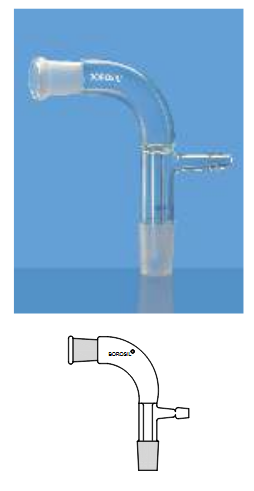

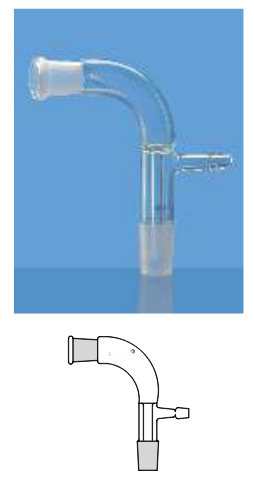

11713- Adapter, Receiver Bent With Vaccum Connection
Product code Socket Joints size Cone joint size Quantity per case
11713/614 14 / 23 14 / 23 5
11713/619 19 / 26 19 / 26 5
11713/719 19 / 26 24 / 29 5
11713/624 24 / 29 24 / 29 5
11713/724 24 / 29 29 / 32 5
11713/624 29 / 32 29 / 32 5

11714- Adapter multiple with Two Neck Parallel
Product code Socket Joints size Cone joint size Quantity per case
11714/614 14 / 23 14 / 23 5
11714/619 19 / 26 19 / 26 5
11714/719 19 / 26 24 / 29 5
11714/624 24 / 29 24 / 29 5
11714/819 19 / 26 34 / 35 5
11714/629 29 / 32 29 / 32 5

11715-Adapter Multiple with Two Necks - one Vertical & one at 450
Product code Socket Joints size Cone joint size Quantity per case
11714/614 19 / 26 19 / 26 5
11714/619 19 / 26 24 / 29 5
11714/719 19 / 26 34 / 35 5

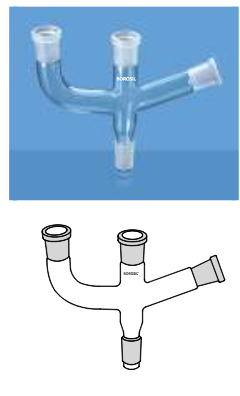

11715-Adapter Multiple with Three Neck, Two Parallel & one at 450
Product code Socket Joints size Cone joint size Quantity per case
11715/A19 19 / 26 24 / 29 5
11715/B19 19 / 26 29 / 32 5
11715/C19 19 / 26 34 / 35 5
11715/D19 19 / 26 45 / 40 5

11716-Swan Neck
Product code Socket Joints size Cone joint size Quantity per case
11716/619 19 / 26 19 / 26 5
11716/719 19 / 26 24 / 29 5
11716/624 24 / 29 24 / 29 5
11716/724 24 / 29 34 / 35 5

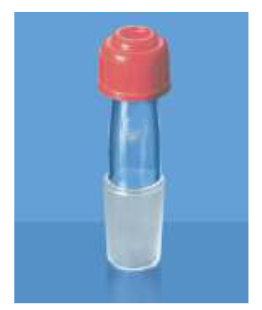

11717-Adapter Cone / Rubber Tubing
Product code Socket Joints size Quantity per case
11717/A10 10 / 19 5
11717/A14 14 / 23 5
11717/A19 19 / 26 5
11717/A24 24 / 29 5
11717/A29 29 / 32 5

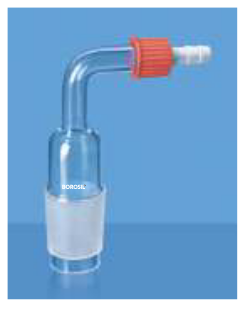

11718-Adapter Cone / Flexible Tubing
Product code Socket Joints size Quantity per case
11718/A14 14 / 23 5
11718/A19 19 / 26 5
11718/A24 24 / 29 5
11718/A29 29 / 32 5
11718/B10 10 / 19 5
11718/B14 14 / 23 5
11718/B19 19 / 26 5
11718/B24 24 / 29 5
11718/B29 29 / 32 5

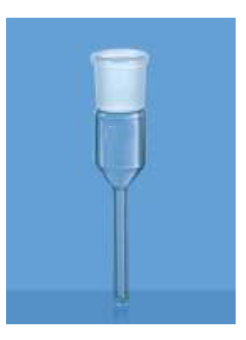

11719-Adapter Receiver Straight Socket To Rubber
Product code Socket Joints size Quantity per case
11719/A14 14 / 23 5
11719/A19 19 / 26 5
11719/A24 24 / 29 5
11719/A34 34 / 35 5

11720-Adapter Receiver Straight With Vacuum
Product code Socket Joints size Cone joint size Quantity per case
11720/614 14/ 23 14/ 23 5
11720/714 14/ 23 19 / 26 5
11720/814 14/ 23 24 / 29 5
11720/619 19 / 26 19 / 26 5
11720/719 19 / 26 24 / 29 5
11720/624 24 / 29 24 / 29 5
11720/724 24 / 29 29 / 32 5

11721- Adapter Receiver Bend With Vent
Product code Socket Joints size Cone joint size Quantity per case
11721/614 14/ 23 14/ 23 5
11721/619 19 /26 19 / 26 5
11721/719 19 /26 24 / 29 5
11721/624 24 / 29 24 / 29 5
11721/629 29 /32 29 /32 5

11722- Adapter Receiver Bend With Vent
Product code Socket Joints size Quantity per case
11722/614 14/ 23 5
11722/619 19 /26 5
11722/719 24 / 29 5
11722/629 29 /32 5

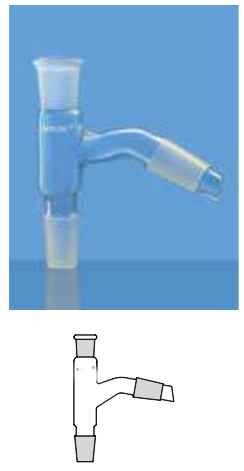

11723- Slopping Plane Still Head
Product code Flask cone Cond. Cone socket Quantity per case
11723/610 10 / 19 10 / 19 10 / 19 5
11723/614 14 / 23 14 / 23 14 / 23 5
11723/619 19 / 26 19 / 26 14 / 23 5
11723/819 19 / 26 19 / 26 19 / 26 5
11723/724 24 / 29 19 / 26 14 / 23 5
11723/624 24 / 29 24 / 29 19 / 26 5
11723/729 29 / 32 19 / 26 14 / 23 5
11723/629 29 / 32 29 / 32 14 / 23 5
11723/634 34 / 35 19 / 26 14 / 23 5
11723/734 34 / 35 24 / 29 14 / 23 5

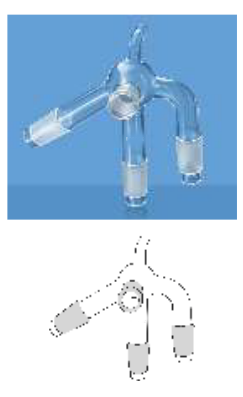

11723/834 34 / 35 34 / 35 14 / 23 5

11724- Adapter Receiver Multiple Connectivity
Product code Socket Joints size Cone joint size Quantity per case
11724/614 14/ 23 14/ 23 5
11724/619 14/ 23 19 / 26 5
11724/719 19 /26 19 /26 5

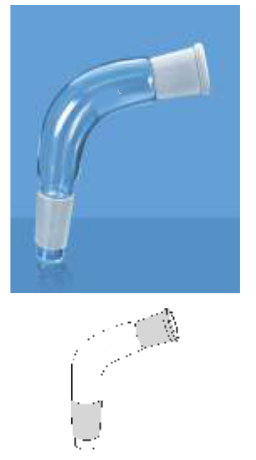

11725- Adapter Receiver Plain Bend
Product code Socket Joints size Cone joint size Quantity per case
11725/619 19 / 26 19 / 26 5
11725/719 19 / 26 24 / 29 5
11725/624 24 / 29 24 / 29 5
11725/629 29 / 32 29 / 32 5

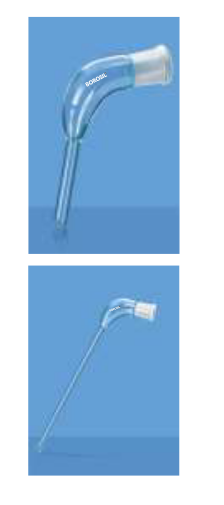

11726- Adapter recovery bend with sloping end
Product code Socket Joints size Cone joint size Quantity per case
11726/619 14 / 23 14 / 23 5
11726/724 24 / 29 14 / 23 5
11726/619 19 / 26 19 / 26 5
11726/824 24 / 29 19 / 26 5
11726/729 29 / 32 19 / 26 5
11726/734 34 / 35 19 / 26 5
11726/624 24 / 29 24 / 29 5
11726/834 34 / 35 24 / 29 5
11726/634 34 / 35 34 / 35 5

11727- Adapter Recovery Bend Vertical
Product code Socket Joints size Cone joint size Quantity per case
11727/614 14 / 23 14 / 23 5
11727/619 19 / 26 19 / 26 5
11727/724 24 / 29 14 / 23 5
11727/624 24 / 29 24 / 29 5
11727/629 29 / 32 29 / 32 5

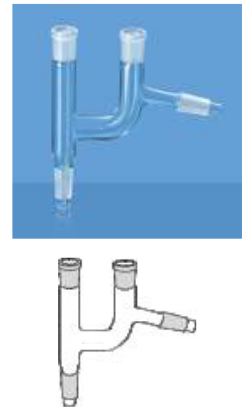

11728- Claisen Head Sloping
Product code Socket Joints size Cone joint size Quantity per case
11728/614 14 / 23 14 / 23 5
11728/619 19 / 26 19 / 26 5
11728/724 24 / 29 19 / 26 5
11728/624 24 / 29 24 / 29 5
11728/629 29 / 32 29 / 32 5
11728/734 34 / 35 24 / 29 5

11729- Adapter Receiver Plain, Vertical
Product code Socket Joints size Cone joint size Quantity per case
11729/614 14 / 23 14 / 23 5
11729/619 19 / 26 24 / 29 5
11729/724 24 / 29 29 / 32 5

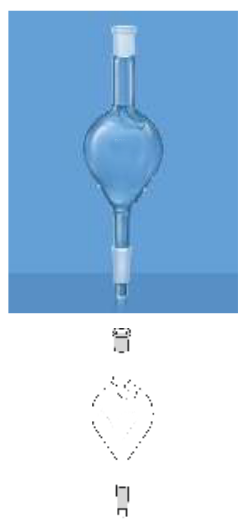

11730- Splash head Vertical Pear Shape
Product code Socket Joints size Cone joint size Quantity per case
11730/619 19 / 26 19 / 26 5
11730/724 24 / 29 19 / 26 5
11730/624 24 / 29 24 / 29 5
11730/629 29 / 32 29 / 32 5

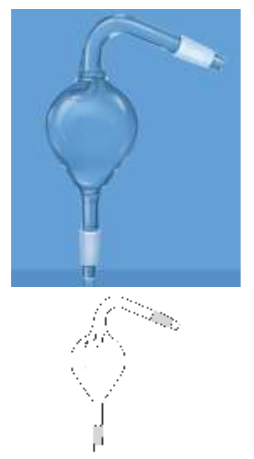

11731- Splash Head Sloping Pear Shape
Product code Socket Joints size Cone joint size Quantity per case
11731/619 19 / 26 19 / 26 5
11731/724 24 / 29 19 / 26 5
11731/624 24 / 29 24 / 29 5
11731/629 29 / 32 29 / 32 5

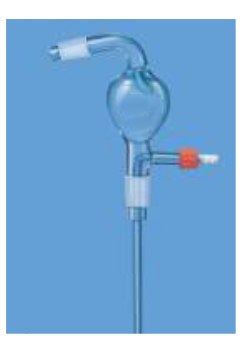

11732- Steam distillation Heads
Product code Socket Joints size Cone joint size Quantity per case
11732/724 24 / 29 19 / 26 5
11732/734 34 / 35 19 / 26 5
11732/834 34 / 35 24 / 29 5

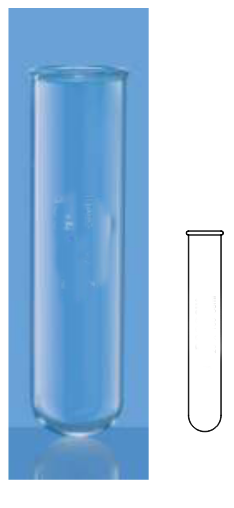

11733- Tubes, Test, With Rim
  • Made of borosilicate glass, designed with a round bottom
  • Made thick-walled, mechanically very resistant
  • High thermal shock resistance
  • Designed with a rim
Product code capacity ml Approx O.D. x Length Quantity per case
11733/U01 3 10 x 75 800
11733/U02 5 12 x 75 800
11733/U03 7 12 x 100 800
11733/U15 4 13 x 55 800
11733/U04 13 15 x 125 800
11733/U05 15 15 x 150 800
11733/U06 27 18 x 150 400
11733/U07 38 25 x 100 200
11733/U08 55 25 x 150 200
11733/U09 70 25 x 200 100
11733/U10 100 32 x 200 50
11733/U11 170 38 x 200 50

11734- Tube for Culture collection
  • Made of borosilicate glass, designed with a round bottom
  • Made thick-walled, mechanically very resistant
  • High thermal shock resistance
  • Used for pathological tests
Product code Approx O.D. x Length Quantity per case
11734/U01 7 x 127 200

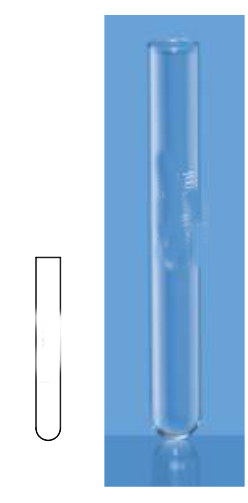

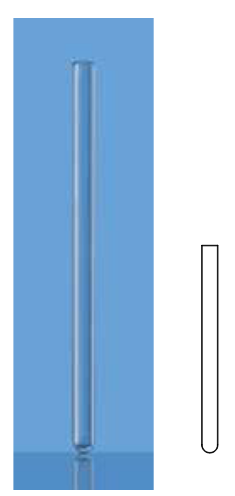

11735- Tubes, Test (Culture), Without Rim
  • Made of borosilicate glass, designed with a round bottom
  • Made thick-walled, mechanically very resistant
  • High thermal shock resistance
  • Designed without a rim
Product code capacity ml Approx O.D. x Length Quantity per case
11735/U16 1 7 x 60 400
11735/U01 3 12 x 75 800
11735/U02 5 12 x 75 800
11735/U03 7 12 x 100 800
11735/U17 8 12 x 125 800
11735/U04 13 15 x 125 800
11735/U05 15 15 x 150 800
11735/U05 12 16 x 100 800
11735/U05 20 16 x 150 800
11735/U18 27 18 x 150 400
11735/U19 25 19 x 12 400
11735/U07 38 25 x 100 200
11735/U08 55 25 x 150 200
11735/U09 70 25 x 200 100
11735/U10 100 32 x 200 50
11735/U11 170 38 x 200 50

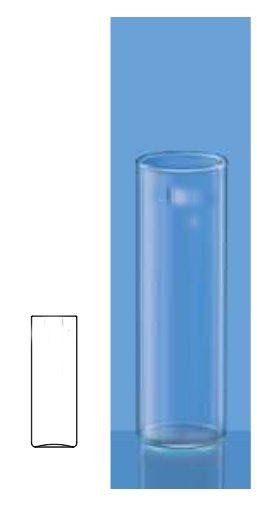

11736- Tube Flat Bottom without RIM
  • Made of borosilicate glass, designed with a flat bottom
  • Made thick-walled, mechanically very resistant
  • Designed without a rim
  • Used for pathological tests and disintegration apparatus
Product code Approx O.D. x Length Quantity per case
11736/U42 12 x 75 800

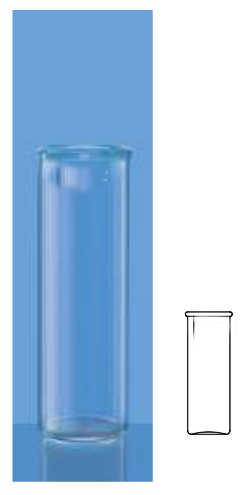

11737- Tube Flat Bottom with Rim
  • Made of borosilicate glass, designed with a flat bottom
  • Made thick-walled, mechanically very resistant
  • Designed with a rim
  • Used for pathological tests and disintegration apparatus
Product code Approx O.D. x Length Quantity per case
11737/U42 18 x 138 400
11737/U42 18 x 55 100
11737/U42 14 x 110 800

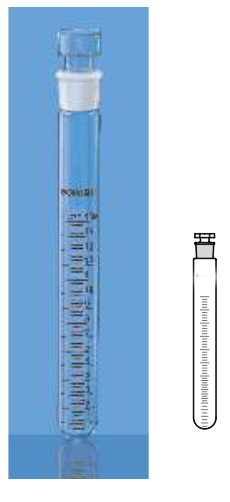

11738- Tubes, Test Graduated, with interchangeable Stopper
  • Made of borosilicate glass, designed with a round bottom
  • Made thick-walled, mechanically very resistant
  • Designed with a rim
  • These Test Tubes are graduated for greater precision
Product code Capacity ml Approx O.D. x Length stopper size Quantity per case
11738/06 10 17 x 160 10 / 15 10
11738/07 15 15 x 150 14 / 15 10
11738/08 20 19 x 160 14 / 15 10
11738/10 30 25 x 155 19 / 26 10
11738/12 50 25 x 200 19 / 26 10
11738/16 100 34 x 210 24 / 25 10

11739- Tubes, COD Digestion Tube
  • Made from thick walled, mechanically very resistance borosilicate glass
  • Used in COD Disintegration
  • Designed with a rim
  • Used for pathological tests and disintegration apparatus
Product code Approx O.D. x Length Quantity per case
11739/A01 36 x 205 10
11739/001 39 x 205 10

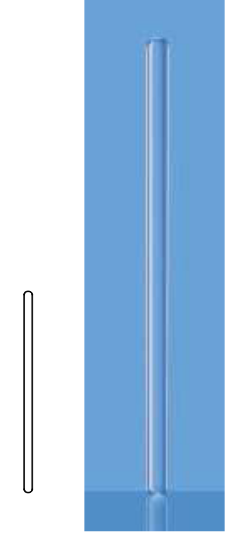

11740- Stirrer
  • Made of polished 3.3 borosilicate glass
Product code Approx O.D. x Length Quantity per case
11740/107 7 x 150 20
11740/207 7 x 205 20
11740/307 7 x 255 20
11740/407 7 x 305 20
11740/109 9 x 150 20
11740/209 9 x 205 20
11740/309 9 x 255 20
11740/409 9 x 305 20

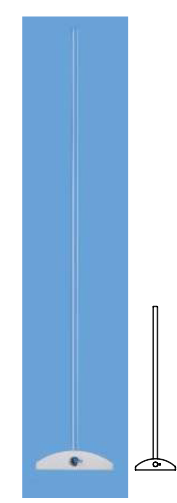

11741- Stirrers, with PTFE Blade
  • Ideal for very sensitive samples
  • Made of polished 3.3 borosilicate glass
  • Provided with chemically inert PTFE blade
  • Application in synthetic laboratory
Product code Description Quantity per case
11741/65 Shaft Dia 6 mm & Length 450 mm Blade Width 50 mm, Suitable for 500 ml Flask,Socket 19 / 26 10
11741/71 Shaft Dia 6 mm & Length 450 mm Blade Width 50 mm,75 mm, Suitable for 1000 ml Flask, ,Socket 24 / 29 10
11741/77 Shaft Dia 8 mm & Length 600 mm Blade Width 100 mm, Suitable for 2000 ml Flask,Socket 34 / 35 5
11741/80 Shaft Dia 8 mm & Length 600 mm Blade Width 125 mm, Suitable for 5000 ml Flask,Socket 34 / 35 5
11741/81 Shaft Dia 10 mm & Length 750 mm Blade Width 150 mm, Suitable for 10000 ml Flask, Socket 55 / 44 5
11741/87 Shaft Dia 10 mm & Length 750 mm Blade Width 200 mm, Suitable for 20000 ml Flask,Socket 55 / 44 5

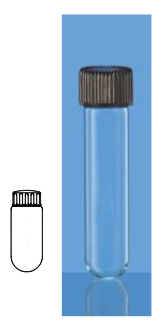

11742- Tubes, Culture, Media, Round Bottom, with PP Screw Cap and Liner
  • Made of borosilicate glass, designed with a round bottom
  • The ideal replacement for media culture bottles
  • Designed with special caps to facilitate handling and sealing
  • The caps have a PTFE liner
Product code Capacity ml Approx O.D. x Length mm Quantity per case
11742/05 5 16 x 75 100
11742/06 10 16 x 125 100
11742/10 30 25 x 100 100
11742/12 50 25 x 150 50
11742/13 60 25 x 200 50
11742/18 150 38 x 200 50

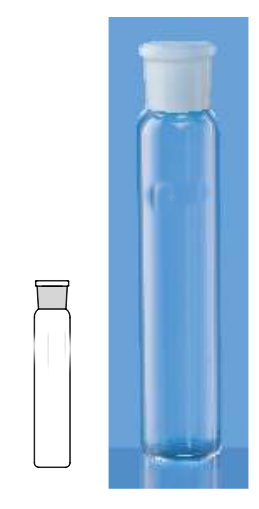

11743- Tubes, Culture, Media, Flat Bottom, with PP Screw Cap and PTFE
  • Made of borosilicate glass, designed with a flat bottom for convenient storage
  • The ideal replacement for Bijou, Mc Cartney and universal bottles
  • Designed with special caps to facilitate handling and sealing
  • The caps have a PTFE liner
Product code Capacity ml Approx O.D. x Length mm Quantity per case
11743/05 5 16 x 50 100
11743/06 10 25 x 50 100
11743/06 15 25 x 57 100
11743/06 20 25 X 72 100
11743/10 30 25 x 95 100
11743/12 50 25 x 145 50

scientificglassapparatus.com © 2020 Copyright. Powered By NickTech Web Solutions
